Model Abstraction Layers

From a high-level perspective, a model is a representation of an excerpt of the real world. In tribefire, this is realized in several abstraction layers. The real world is abstracted by data representing it. This data is as diverse as the reality is, so it's hard to deal with it in a coherent way. To overcome this problem, homogeneous models are introduced that define the data in a normalized way. The data can then be considered as instances of the models and their elements.

To assure the models' homogeneity they are defined by a model, too - the meta-model, which is built with the same principles as every other model in tribefire. This way, just like the data, also models are instances of a model. The logical consequence from this approach would now be that also the meta-model is defined by a model. But instead of introducing a meta-meta-model (which would have to be defined by another model again), this is solved such that the meta-model is able to describe itself. So the meta-model is also an instance of itself, thus avoiding to introduce another modeling domain.

For more information, see Meta Model.

Custom Model Instantiation

When a model is created, all its elements are instances of the definitions provided by the meta-model, which are modeled there as entity types.

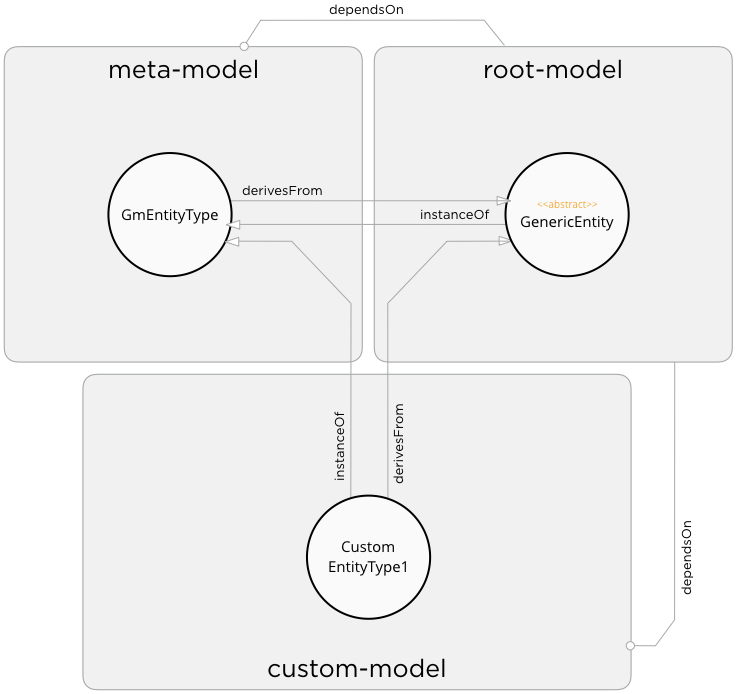

The illustration below shows this scenario in a simplified example, where a custom entity type in a custom model is created as an instance of GmEntityType from the meta-model.


Root Model

Another model that is always involved whenever a model is created is the root-model.

Root-model provides the type GenericEntity, which acts as a marker telling tribefire that an element is to be treated as an entity type. Every entity type must have the GenericEntity on top of its hierarchy, so it must be included in every model. This inclusion is done via model dependency, which allows to use types declared in other models.

Using model dependencies, the included types are not copied to the local model but referenced from it. Also the type GmEntityType from the meta-model is an entity type so, as logical consequences, also GmEntityType has GenericEntity as its supertype and the meta-model has the root-model as a dependency. This leads to the interesting fact that GmEntityType derives from GenericEntity although GenericEntity is an instance of GmEntityType.

This Münchhausen phenomenon is resolved during the ITW process.

For a detailed documentation of the root-model, see Root Model.

Enriching and Skeleton Models

We distinguish two basic model types: skeleton models and enriching models.

Skeleton Model

A skeleton model defines custom types (GmEntityType, GmEnumType) and may depend on other models. If no other dependency is needed, it needs to at least depend on the root-model. A skeleton model must not declare type overrides.

For more information about overrides, see Metamodel.

If other dependencies are needed, each dependency is a skeleton model as well.

Currently a skeleton model is represented via:

  • Java interface class files
  • Java enum class files
  • Java annotations used in those class files

Metadata can be applied on entity types (and related properties), enum types (and related constants) and property overrides reachable by GmMetaModel.types. Essentially this means that a skeleton model should only contain annotatable essential metadata.

Enriching Model

An enriching model on the other hand does not declare custom types (empty types collection). It may depend on other models which can be either a skeleton as well as another enriching model.

An enriching model may declare type overrides and those can declare any type of metadata on it. Unlike the skeleton model, an enriching model is not restricted to annotatable essential meta data.

Enriching models are represented by incremental changes to the cortex - ManipulationPriming in form of .man files (e.g. changes done via the metadata editor) or code primings in the form of initializers (e.g. Java).

An enriching model therefore enriches your skeleton model with those data that would get lost in the asset roundtrip (creating an asset, publishing it in an asset store, depending on it) on a skeleton model otherwise as, for example, custom meta data is not represented as a Java annotation and therefore would not be present in a deployed asset .jar file.

In a runtime environment as well as in current setups, this clear separation is not always into place. There, skeleton models hold non-essential metadata as well. This should be avoided as it may cause information loss if not handled properly.

Model - The Full Picture

Let's explore a more advanced scenario now, where the custom model contains two entity types, CustomEntityType1 and CustomEntityType2. CustomEntityType1 has three simple properties with the types:

  • string
  • integer
  • Boolean.

It also has a complex property which depicts a single relation.

The two custom entity types are declared as instances of GmEntityType and are subtypes of GenericEntity.

The four properties of CustomEntityType1 are instances of GmProperty, which itself derives from GenericEntity again.

The complex property, depicting the single relation, references CustomEntityType1 as its type. To define the three simple properties the three types string, integer and boolean from the root-model are directly referenced. Those three types are instances of GmStringType, GmIntegerType and GmBooleanType from the meta-model, respectively.



The diagram below extends this further, by introducing three additional entity types with relations depicting different collections. The purple relation starting from CustomEntityType2 represents a set, therefore its declared type is GmSetType, while its elementType (declaring what types the set can contain) is CustomEntityType3.

CustomEntityType3 is now the starting point for the green relation, which represents a list and is declared by having GmListType defined as its type and CustomEntityType4 as its elementType. From CustomEntityType4 to CustomEntityType5 we can see a map relation (represented by the green color and the map symbol at its end). Maps are defined by declaring their type with GmMapType, a keyType - in this example defined via GmStringType - and an elementType, which is CustomEntityType5.



The last example we inspect is shown on the illustration below. It introduces an enum-type with three constants. The enum type is declared as an instance of GmEnumType, whereas the constants are instantiations of GmEnumConstant.

Further, this example shows a convenient way to restrict the id property of CustomEntityType1 to long. This is achieved by deriving the entity type from StandardIdentifiable, which is a subtype of GenericEntity and has a property override with a metadata config for id that specifies its type to long.
