Using Value Descriptors with Templates

The ultimate goal of Value Descriptors is to provide data to your templates. Let's assume we want to create a template-based instantiation action which creates a new instance of entity type Person with the same firstName property as the currently logged-in user's name. Additionally, we want the created property to be assigned with the current date. We have Value Descriptors just for that - the UserName descriptor, which gets the user name in context of the current session, and the Now descriptor, which gets the current date.

Prerequisites

This tutorial is based on the Demo Cartridge, where the anything property of Person entity has been renamed to created.

• You have a person-model in your Tribefire instance, declaring the Person entity type with a firstName (string) and created (date) property.
• person-model is added as a dependency to the meta-model of the workbench of the access where you want to use Value Descriptors.
• person-model is added as a dependency to the meta-model of the access where you want to execute the template-based action.
• basic-value-descriptor-model (one of the Base Models) is added to the access workbench meta-model.

Creating a Template-based Instantiation Action

The most intuitive approach to use Value Descriptors in GME would be probably the following:

1. Switch to the target access' workbench.
2. Create a template with the Person prototype.
3. Assign the UserName descriptor as the person firstName in the prototype instance.
4. Similarly, assign the Now descriptor as the created date.
5. Create the instantiation action from template.
6. Profit.

Unfortunately, the above would result in a type mismatch. firstName property expects a string, while the Value Descriptor has its own type. We need to use Template Evaluation (an internal process) to resolve the Value Descriptor to a string (because firstName is a string). To do so, you need to assign the descriptor as follows:

1. Switch to the access workbench.

2. Find the Template query in Quick Access... and create a new template

3. Assign Person as the prototype.

   Note that you need to instantiate Person at this point. Keep this instance in mind - you will need to refer to it later.

4. Assign the typeSignature of your prototype.

   You can copy the signature from the EntityTypes query in Control Center after finding your prototype there.

5. Assign new CompoundValueManipulation as the template script. A new window opens, presenting the compoundManipulationList. This is where you need to add the actual manipulations (two in our case).

6. Add new ChangeValueManipulation instance to the list.

7. Assign the UserName descriptor as newValue.

8. Now, you need to define where the new value is to be assigned. Configure the ChangeValueManipulation owner as follows:

   1. Assign new LocalEntityProperty as owner.

   2. Inside the LocalEntityProperty, assign Person as the entity to be changed.

      Important: it has to be the same instance of Person as used in your prototype.

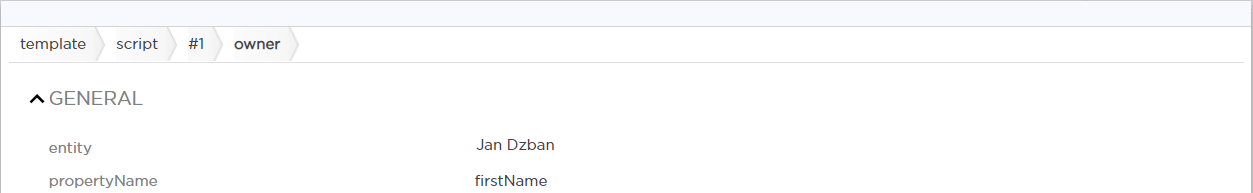

   3. Assign firstName as the property to be changed. This configuration states that our newValue (in this case the user name descriptor) is to be assigned as the firstName. Owner's entity should now be assigned with the prototype instance of Person, referring to its firstName property.

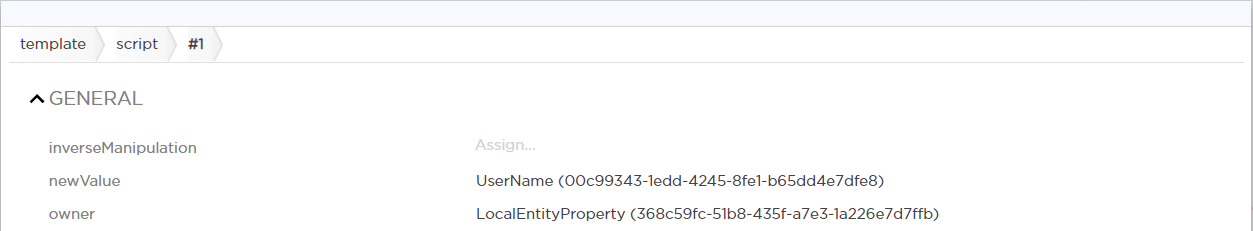

9. Apply your changes. Your first manipulation should now look as below:



10. Following the same procedure, add another ChangeValueManipulation to the list. This time, assign the Now descriptor as newValue.

11. Configure the owner as you did previously, but this time with created as the property to be changed.

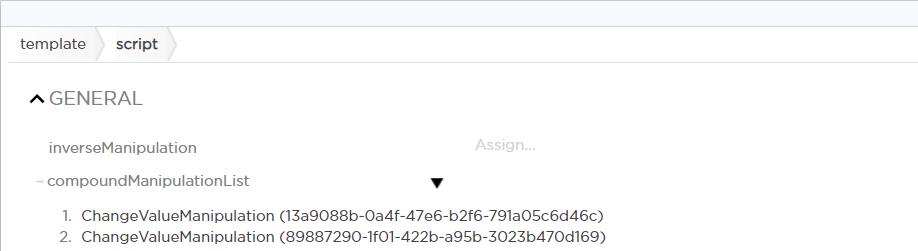

12. Finally, apply your changes. You should now have two entries in compoundManupulationList:

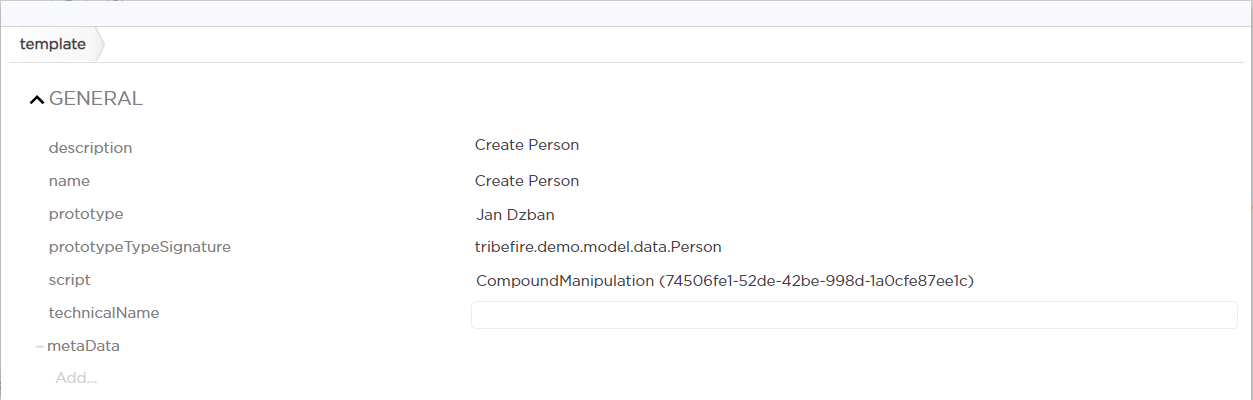

13. Your template is now ready. Commit your changes.



14. Find the TemplateInstantiationAction query in Quick Access.... Create a new instantiation action that creates a new Person based on your template (to achieve this, simply assign the previously configured template to the action). When committed, the action is available in Global Actions query in the workbench.

15. Assign your instantiation action in the workbench. For more information, see Configuring Workbench

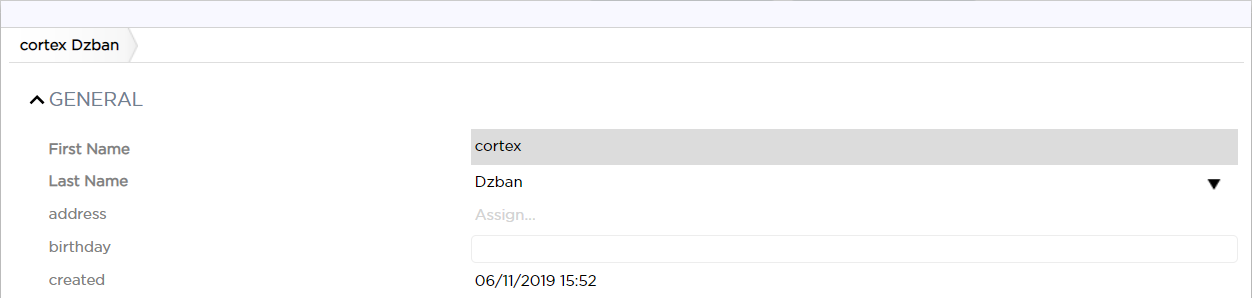

16. Once commited, your instantiation action should be available in the target access as assigned in the workbench. Try it out! The result should be a new instance of Person with a new firstName and created date:



What's next?

Take a look at the available Value Descriptors, and think about how they could benefit your templates. Note that you are not limited to a single manipulation, as described above - you can create complex, compound manipulations just as easily.
