Changing Resource Folder Location

You can change the default directory where your resources are persisted. You can do this by overriding certain properties of the entity type the resource comes from.

If you want to change the resource folder location in a cloud setup, it is better to use a SQL database to store resources as it can be accessed by every instance in your setup. For more information, see Persisting Resources in SQl Database.

Changing Resource Folder Location Programmatically

In this procedure we assume the access is a SmoodAccess and the metamodel your access uses has a dependency to basic-resource-model which contains the FileSystemSource entity type. For more information about accesses, see Access.

1. Find the proper ResourceSource your model uses. In this example, our model uses the FileSystemSource. Depending on your model, your ResourceSource may be different.

2. Create an instance of FileSystemBinaryProcessor and, in the basePath property, assign the path where you want your resources to be persisted.

It is best to use the common Tribefire storage path runtime property (${TRIBEFIRE_STORAGE_DIR}/your/custom/path) as the base for your custom path but you can also use an absolute path or a completely new runtime property. For more information on available properties, see Runtime Properties.

   @Managed
    private FileSystemBinaryProcessor fsStreamerProcessor() {
        FileSystemBinaryProcessor bean = FileSystemBinaryProcessor.T.create();
        bean.setExternalId("binaryProcessor.FileSystem");
        bean.setBasePath(TribefireRuntime.getProperty("RESOURCE_BASE_PATH"));
        return bean;
    }

3. Create an instance of the binaryProcessWith metadata and set the values of the retrieval and persistence , for example:

   @Managed
    BinaryProcessWith fsBinaryWithRequest() {
        BinaryProcessWith processWith = BinaryProcessWith.T.create();
        processWith.setRetrieval(fsStreamerProcessor());
        processWith.setPersistence(fsStreamerProcessor());
        processWith.setGlobalId(someId);
        processWith.setConflictPriority(1d);
        return processWith;
    }

4. Add your configured instance of binaryProcessWith metadata to the FileSystemSource entity type of your model:

    ModelMetaDataEditor mdEditor = new BasicModelMetaDataEditor(yourModel);

    mdEditor.onEntityType(ResourceSource.T).addMetaData(fsBinaryWithRequest());
    mdEditor.onEntityType(FileSystemSource.T).addMetaData(fsBinaryWithRequest());

Changing Resource Folder Location in Control Center

1. Log in to Control Center. For more information about Control Center, see Using Control Center.

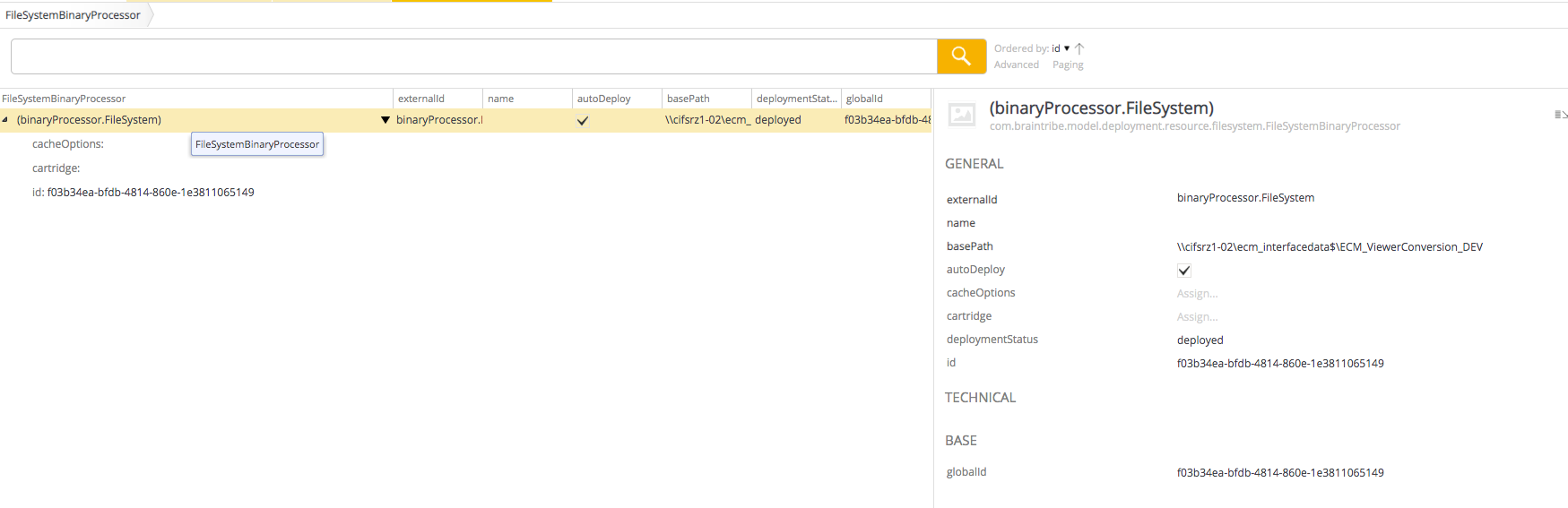

2. Create an instance of FileSystemBinaryProcessor (com.braintribe.model.deployment.resource.filesystem.FileSystemBinaryProcessor) and assign proper values for the following:

   • externalId
   • name
   • basePath

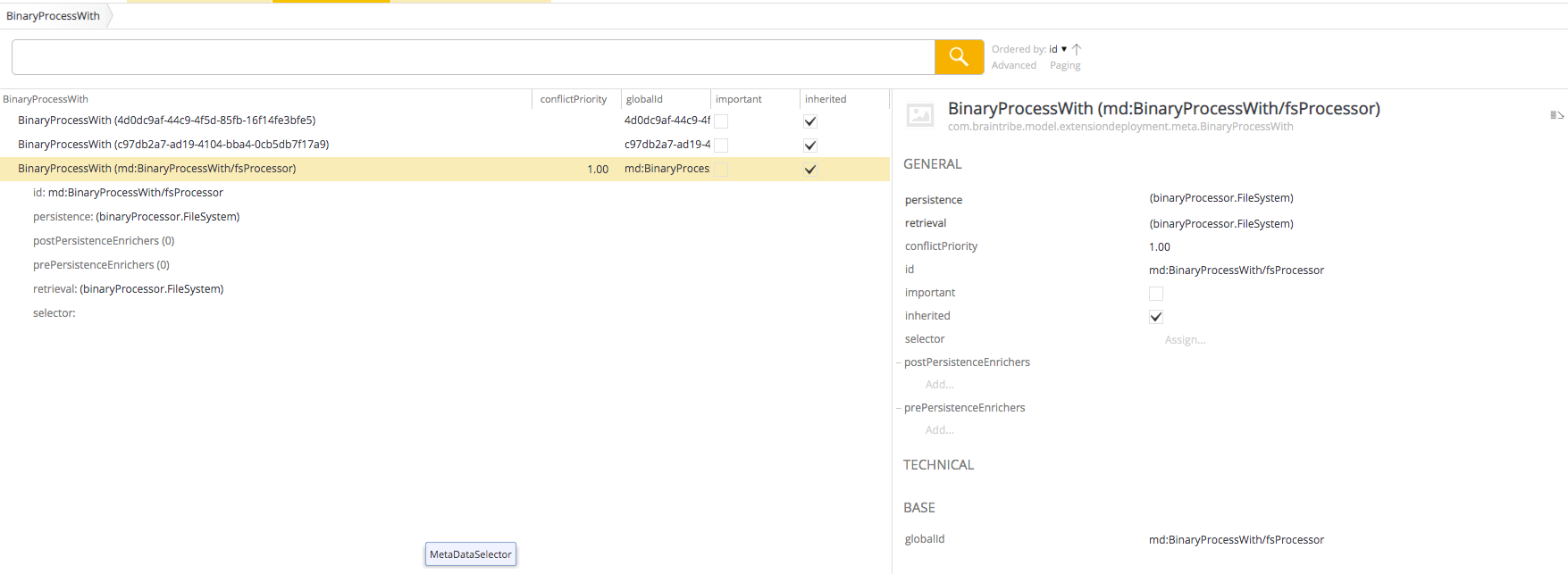

3. Create a BinaryProcessWith Metadata (com.braintribe.model.extensiondeployment.meta.BinaryProcessWith) and assign proper values for the following:
   • in the persistence property, assign your instance of FileSystemBinaryProcessor from step 2
   • in the retrieval property, also assign your instance of FileSystemBinaryProcessor from step 2

4. Create a GmEntityTypeOverride type override (com.braintribe.model.meta.override.GmEntityTypeOverride) and assign proper values for the following:

   • in the declaringModel property, assign the metamodel of your access
   • in the entityType property, assign FileSystemSource
   • assign your instance of BinaryProcessWith metadata here

5. In the metamodel of your access, add your instance of GmEntityTypeOverride you created in step 4.
